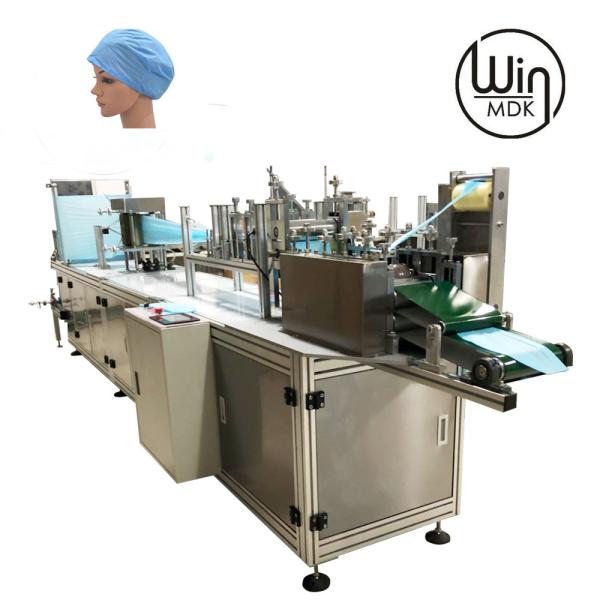

Fast and efficient Fully Automatic Disposable Non Woven Doctor Surgical Cap making Machine
Doctor cap making machine is a special equipment of fully automatic production of PP Non-woven mob/clip caps. The whole process of raw material feeding, forming,shaping and cutting is automatically finished at one time with high speed. It adopts the ultrasonic welding and cutting one-time molding.
Features:
1. Full automatic constant running machinery.no need more then two person operate,just one person received and packing is ok.
2. Three sets of Ultrasonic welding combined with electric heating to make the product more comfortable and firm.
3. With frequency control, electronic counting, energy efficient.
4. It has the advantages of good quality, low price, high output, saving labor and reducing cost. It can be customized according to customers' requirements.
5. Ultra-high power ultrasonic welding is used to fix both ends of non-woven fabric and rubber band effectively.
The Specification:
| Material Width | 490mm |
| Finished Width | 2 cm |
| Non-woven Thickness | 30g |
| Unwinding Diameter | 600mm |
| Finished Size | Tiled:25cm,Stretch 46/48/51cm |
| Production Speed | 150-200pcs/min |
| Main Engine | 1.5kw |
| Transducer | 1.8kw&2kw |
| Total Power | 8.5kw |
| Dimension | 8250*880*1600mm |
| Weight | 1800kgs |
Payment and Shipemnt:
Payment and delivery:
1.30% in advance,the balance before shipment.
2.Ussually machine ready 7-10working days around.
3.Packing with wooden case.
